Telescope - Launching Wheels for inflatable boats made of stainless steel.
For transom height 43cm.

WE SHIP WORLDWIDE !

Protected by patents

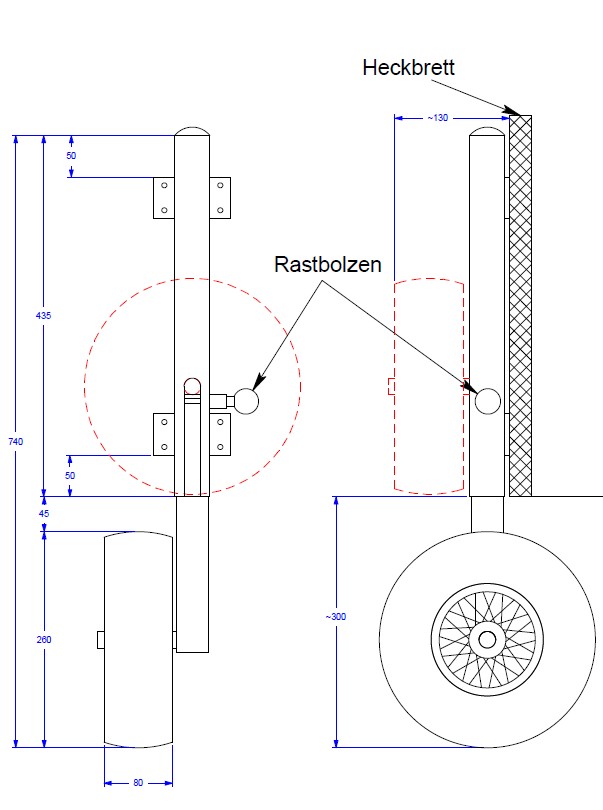

The „Telescope - Launching Wheels“ are attached to the outer side of the transom, so that the wheels can be folded up and down unobstructedly. The top and bottom positions of the wheels are fixed according to the design of the boat. Using the appropriate telescope feature, they can be folded down when transporting the boat, so that the stern rests firmly on the two wheels. The „Telescope - Easy Rolling Launching Wheels“ can thus be folded up and locked into place, so as not to obstruct the journey on the water and allow unhindered rolling up/folding of the boat (without disassembling the „Telescope - Easy Rolling Launching Wheels“).

All parts are made of stainless steel and are thus highly resistant to water and hardy. The wheels are made of plastic rims and inflated rubber tyres.

Product description:

  • wheels: inflated rubber tyres with valves on plastic rims without bearings
  • wheel diameter: Ø260mm
  • outside column: stainless steel round tube 42,4 x 2,0 mm
  • inner column: stainless steel round tube 38 x 2,0 mm
  • all metal parts made of stainless steel
  • weight of a pair of launching wheels – 6,0 kg.

Features:

  • foldable and detachable
  • do not need to be fitted and dismantled for every journey on the water
  • can be extended and folded by hand
  • the boat comes movable quickly and without using any tools
  • a single person can thus comfortably move a loaded boat
  • the folded up and locked wheels do not obstruct the journey on the water
  • do not limit the engine compartment, what is especially important when maneuvering
  • allow a deflated dinghi with mounted wheels, as well as unobstructed rolling up (see photo)
  • the overall apperance of the boat on the water is not impaired by the wheels (see photo)
  • compatible with any boat transom
  • make boats moveable with a weight of up to 180 kg

Payment method:

  • advance payment / bank transfer
  • PayPal
Shipping cost:

  • World zone 0 (DHL) : 6,90 €
  • World zone 1 (DHL) : 17,00 €
  • World zone 2 (DHL) : 30,00 €
  • World zone 3 (DHL) : 36,00 €
  • World zone 4 (DHL) : 42,00 €

Included in delivery:

  1. tyres : inflated rubber tyres + plastic rims without bearings
  2. stainless steel struts with corresponding stainless steel components : spacer washers, split pins and springs
  3. Stainless steel screws for mounting on stern board.
  4. installation instructions
The Launching Wheels are delivered assembled, ready for mounting on the boat already.




Launch Wheels Launch Wheels
Launch Wheels Launch Wheels

Launch Wheels

Launch Wheels

Launch Wheels

Launch Wheels

Launch Wheels

Launch Wheels

Launch Wheels

Launch Wheels

Launch Wheels







Specifications:





Launch
wheels TS-43
115,00 €
Shipping 6,90 €
Total 121,90 €
